Product Description of Horizontal Cartoning Machine
The Cartoning Machine is designed for auto packing products into carton. By connecting to carton opening machine and carton sealing machine, it saves more manpower and increases production efficiency.
Product Parameters of Horizontal Cartoning Machine
| Speed | Specifications of the paper carton | Specifications of the manual |
| less 260 boxes/min | (80mm-180mm)x(20mm-90mm)x(15mm-55mm) | (110mm-180mm)x(90mm-250mm) |
| Power | Total Power | Equipment dimensions |
| 380V.50HZ | 3.7kw | (3800-6500)mmx1200mmx1500mm |
| Compressed air pressure | Compressed tolerance | Weight |
| 0.6Mpa | 6m3/h | 2200kg |
Main Feature of Horizontal Cartoning Machine
It adopts the PLC, closed loop servo(variable frequency) circuit automatic control system.
It adopts the human-machine interface aviation operating system, which automatically displays the cartoning speed, quantity, fault causes and other performance parameters, and also displays operation and maintenance methods.
The adjustment and use of various specifications within the stipulated range can be realized in one machine.
It is provided with manual and automatic switching functions.
The use instructions folding and cartoning functions can be completed sychronoursly.
Three rows of batch numbers can be embossing printed on the box synchronously, and the function of printing the serial number can be added.
It is provided with the automatic detection system, and the function of positioning, stopping and online elimination is provided for nonconforming products.
It can be equipped with the hot melt adhesive machine.
Through the dial adjustment and user-friendly mechanical memory device, simple calibration of the position of relevant devices can be carried out quickly to realize fast replacement among different sizes of products.
Show of Horizontal Cartoning Machine

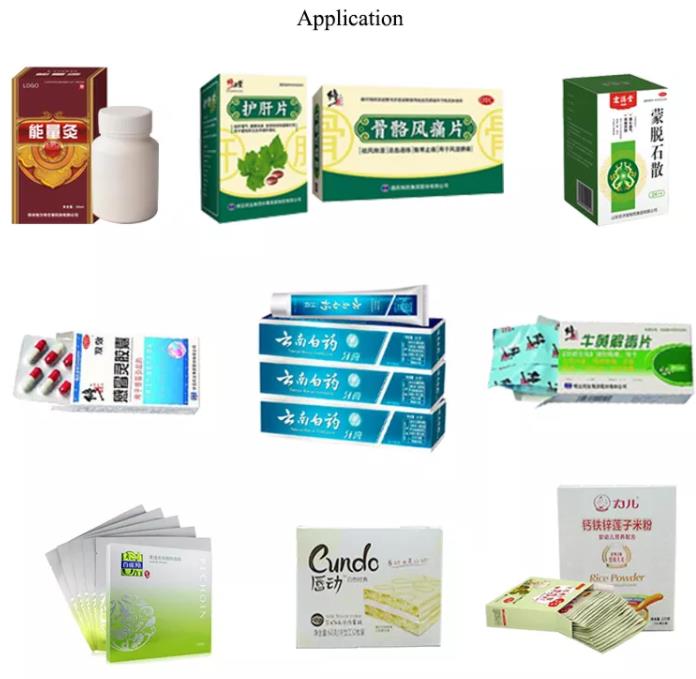

Application of Horizontal Cartoning Machine
Automatic cartoning machine is a high-tech carton packaging equipment, which has been widely used in carton packaging in medicine, food, daily necessities, hardware, electronics, toys, automobiles and other industries.
